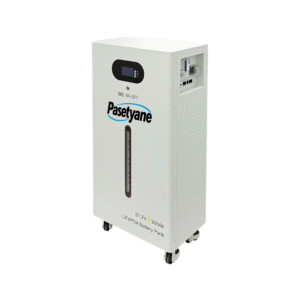

51.2V 15.36kWh Energy storage battery
Key Specifications:
- Case Design: Free-standing
- Battery Type: LiFePO₄
- Nominal Battery Model: 51.2 V / 300 Ah
- Nominal Capacity: 15360 Wh
- Voltage Range: 40–58.4 V
- Float Charge Voltage: 58.4 V
- Max Continuous Discharge Current: 160 A
- Max Continuous Charge Current: 100 A
- Cycle Life: ≥3000 cycles (≈5 years)
- Storage Temperature: −10 °C ~ +45 °C
- Storage Duration: 3 months at 25 °C
- Degree of Protection: IP20
- Communication: CAN / RS485 / RS232 (BMS with inverter communication)
- Protection: Overcurrent / Overdischarge / Overcharge / Short-circuit protection
- Working Temperature: Discharge: −20 °C ~ +65 °C; Charge: 0 °C ~ +45 °C
- Humidity: 0–80% (no condensation) -

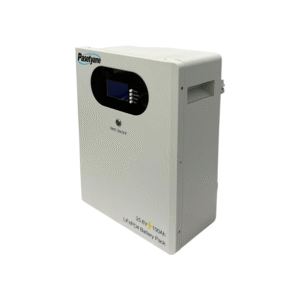

25.6V 2.56kWh Wall-mounted energy storage battery
An energy storage battery is a large-capacity rechargeable battery system. It is designed to store electrical energy and release it steadily when needed, providing continuous and reliable power support for various equipment and systems.
This is currently a highly popular new energy solution in the market.
Energy storage batteries are mainly divided into two types: Lithium Iron Phosphate (LiFePO4) Batteries and Lithium Nickel Manganese Cobalt (NMC) Batteries, with multiple voltage platforms (e.g., 12V/24V/48V) available to meet the power requirements of different applications. They are very easy to install and use.
A complete energy storage battery system primarily includes battery modules, an intelligent Battery Management System (BMS), and a matching inverter. The system features a highly integrated design, ensuring safety and reliability.
We offer a five-year product warranty, along with an extended long-term performance guarantee for the battery cells.
-
5Kwh Home energy storage batteries
Product Model UBT-D05-U01 UBT-D05-U02 UBT-D10-U01 Nominal Voltage (V) 51.2 25.6 51.2 Nominal Capacity (Ah) 100 200 205 Energy (Wh) 5120 5120 10496 Dimensions (mm) L420 × W482 × H133 L420 × W482 × H133 L650 × W483 × H222 Weight (kg) 50 50 100 Discharge Cut-off Voltage (V) 40 20 40 Charge Cut-off Voltage (V) 58.4 29.2 58.4 Communication Interface RS485, RS232, CAN RS485, RS232, CAN RS485, RS232, CAN Cell Configuration 16S1P 8S2P 16S1P Operating Temperature 0–55°C 0–55°C 0–55°C Design Life 10+ Years (25°C/77°F) 10+ Years (25°C/77°F) 10+ Years (25°C/77°F) Cycle Life >6000 cycles, 25°C/77°F, 80% DOD >6000 cycles, 25°C/77°F, 80% DOD >6000 cycles, 25°C/77°F, 80% DOD Certifications CE / UN38.3 / MSDS CE / UN38.3 / MSDS CE / UN38.3 / MSDS Max Charge/Discharge Current 100A 100A 200A Max Parallel Units Supported 15 15 15
