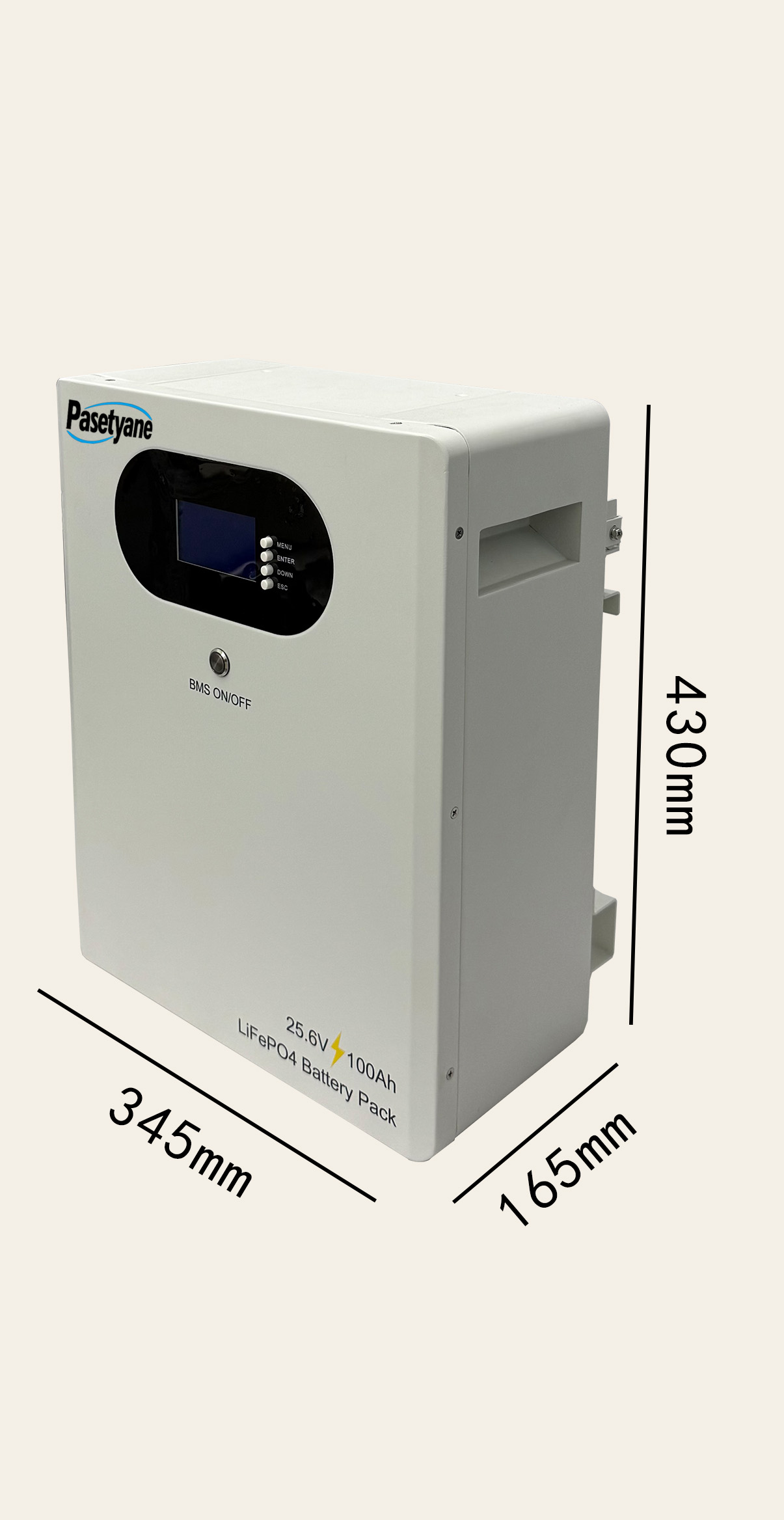

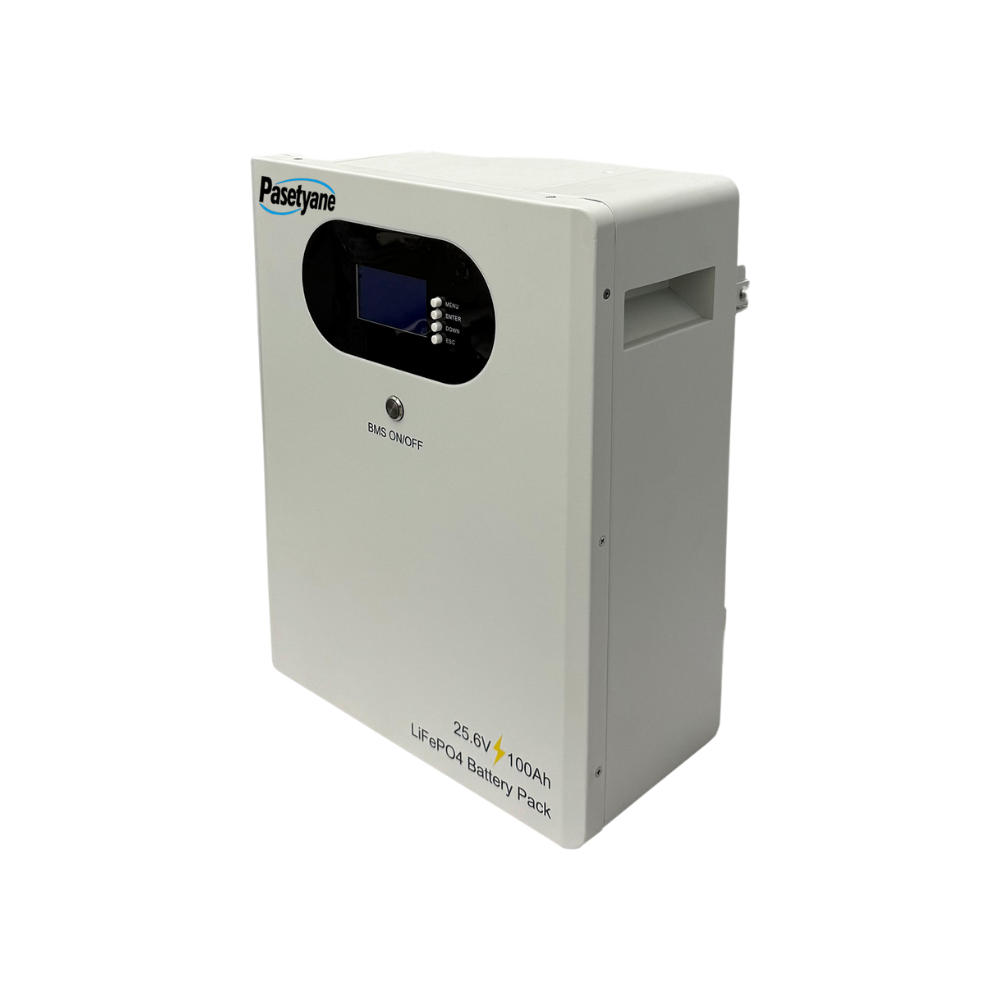

25.6V 2.56kWh Wall-mounted energy storage battery
An energy storage battery is a large-capacity rechargeable battery system. It is designed to store electrical energy and release it steadily when needed, providing continuous and reliable power support for various equipment and systems.
This is currently a highly popular new energy solution in the market.
Energy storage batteries are mainly divided into two types: Lithium Iron Phosphate (LiFePO4) Batteries and Lithium Nickel Manganese Cobalt (NMC) Batteries, with multiple voltage platforms (e.g., 12V/24V/48V) available to meet the power requirements of different applications. They are very easy to install and use.
A complete energy storage battery system primarily includes battery modules, an intelligent Battery Management System (BMS), and a matching inverter. The system features a highly integrated design, ensuring safety and reliability.
We offer a five-year product warranty, along with an extended long-term performance guarantee for the battery cells.
描述
PTS-Y100 — Key Specifications:
- Case Design: Wall-mounted
- Battery Type: LiFePO₄
- Nominal Battery Model: 25.6 V / 100 Ah
- Nominal Capacity: 2560 Wh
- Voltage Range: 20–29.2 V
- Float Charge Voltage: 29.2 V
- Max Continuous Discharge Current: 65 A
- Max Continuous Charge Current: 35 A
- Cycle Life: ≥3000 cycles (≈5 years)
- Storage Temperature: −10 °C ~ +45 °C
- Storage Duration: 3 months at 25 °C
- Degree of Protection: IP20
- Communication: CAN / RS485 / RS232 (BMS with inverter communication)
- Protection: Overcurrent / Overdischarge / Overcharge / Short-circuit protection
- Working Temperature: Discharge: −20 °C ~ +65 °C; Charge: 0 °C ~ +45 °C
- Humidity: 0–80% (no condensation)
